Durable CNC Plasma Cutting Machine System - Industrial Grade CNC Control for Metal Fabrication | Perfect for Metalworking, Automotive Repair & DIY Projects

Product Description

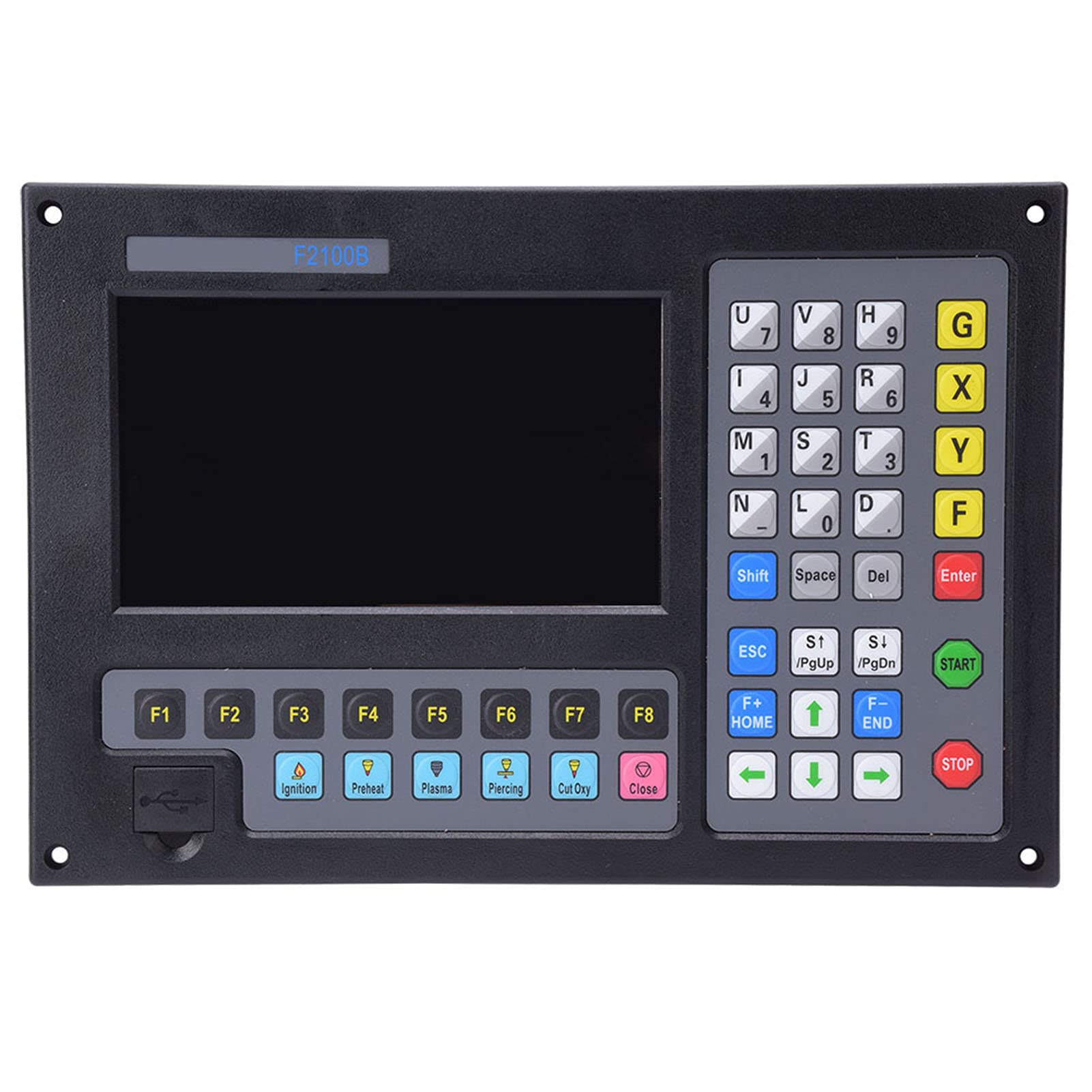

Feature:1. F2100B can be used in CNC flame cutting machine equipment and CNC plasma cutting machine equipment, CNC flame plasma dual-purpose cutting machine equipment.2. Chinese, English, Spanish, Portuguese, French, Russian, Danish, Korean, Japanese and other language menus, language one-click switching. All languages ​​except Arabic are supported.3. 47 common graphics libraries (including grid graphics) with the option to set the tile size and hole size.4. Support EIA (G code) and various nesting software such as FastCAM, FreeNest, SmartNest, IBE. Supports suffixes TXT, CNC, NC, MPG, B3 and other G codes.5. Compact keyboard design makes manual input files more comprehensive.Specification:Item Type: Plasma Cutting Machine Control SystemNumber of Control Axes: 2-axes linkageControl Accuracy: ±0.001mmCoordinate Range: ± 99999.99mmMaximum Pulse Frequency: 200KHz; maximum operating speed: 15 meters / minuteMaximum Number of Program Lines: 150,000 linesMaximum Single Program: 4MTime Class Resolution: 10msSystem Working Power: DC +24V DC power input, power is greater than 80W.System Working Environment: Temperature -10 ° C to +60 ° C; relative humidity 0-95% without condensationDrive Arc Voltage Increase Motor Maximum Power: 45W (Note: only with T system)System Interface:15-core male two-axis motor drive interface16-core female 16-channel opto-isolated output, maximum sink current 300mA25-core male 16-channel opto-isolated input, maximum input current 300mAThe front panel has a built-in USB interface for the user to transfer the cutting codeExtended IO input and output port; PWM input port; analog input port The following interfaces, the F2000 series CNC system
